S840 laser leveling machine

Leveling thickness: 3-30 cm
Work efficiency: 300 ㎡ -500 ㎡/hour

contact
1. The structure is lightweight and flexible, and the machine only weighs 880kg.
2. Electric vibration, electric steering, electric walking.
3. The 23 horsepower engine of Briggs&Stratton in the United States has sufficient power.
4. The machine comes with a feeding spiral, reducing the labor intensity of construction workers and improving construction quality.
5. The machine comes with a fine adjustment function, which effectively controls the accuracy of the concrete floor and improves the construction quality.
6. The main structural components are all imported with stable performance.

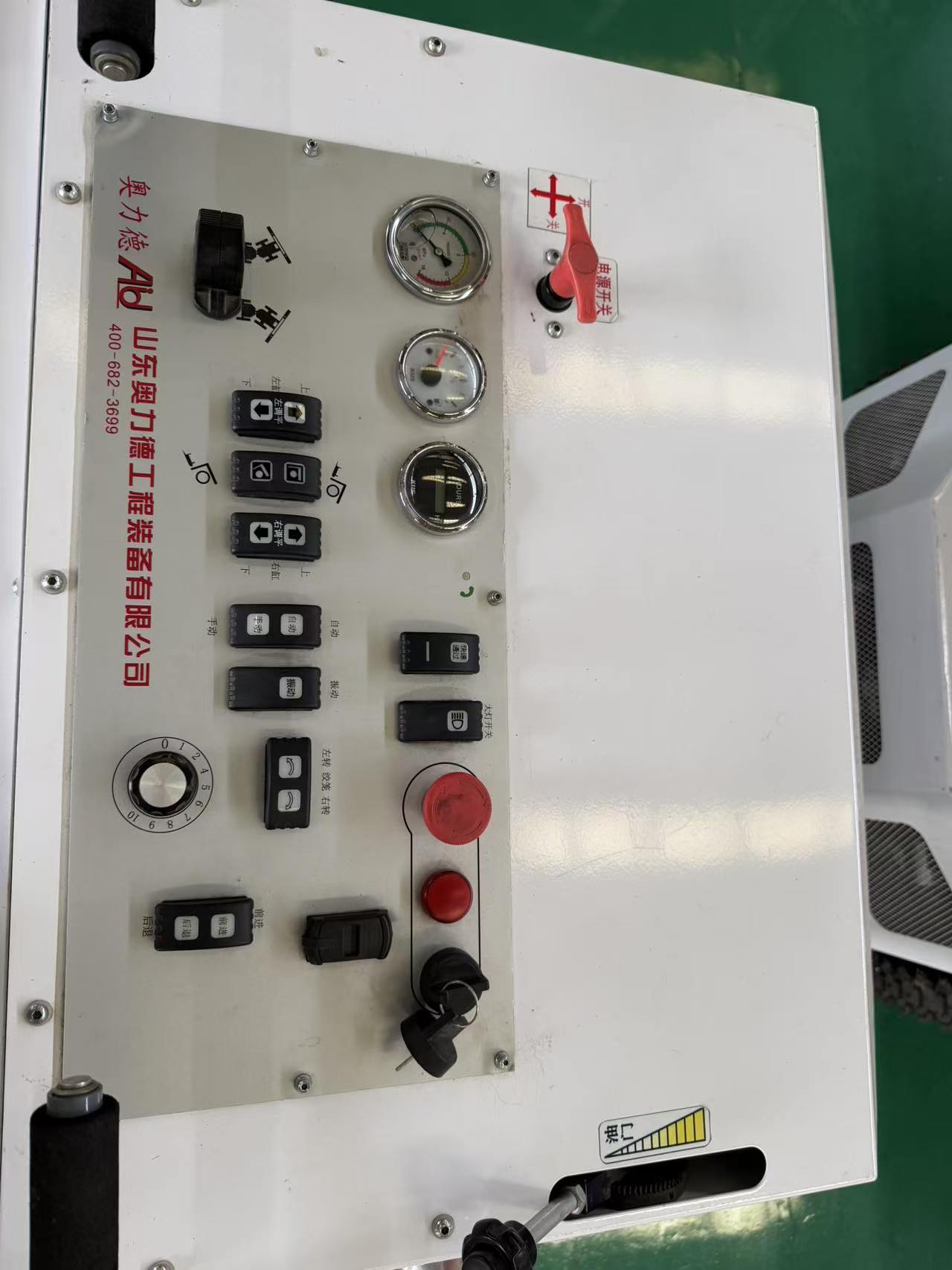

7. Intelligent operation panel, flexible operation, single person can operate the construction.
8. The laser transmitter is arranged independently to ensure consistent ground elevation and avoid errors.
9. The twisted cage between the vibrating plate and the scraper flips the excess concrete onto one side, reducing manpower and improving speed.
10. Integrated leveling head, integrating multiple processes together, improving work efficiency and saving labor.
11. The construction area is over 400 square meters per hour, and the workload can be completed over 3000 square meters per day, greatly improving the work efficiency.
Main technical parameters
engine   Leveling system

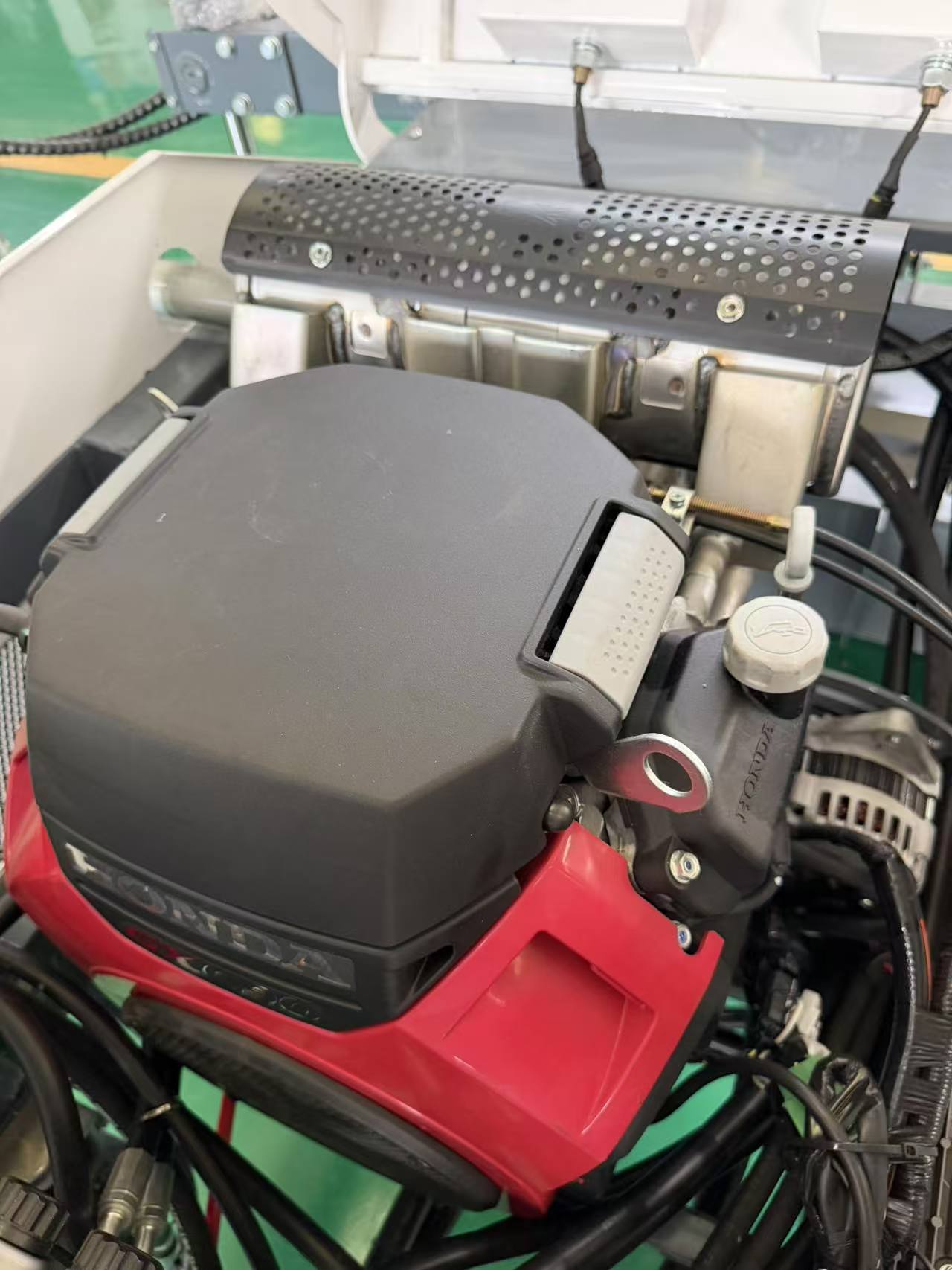

Engine model Honda 690/BLT 3864 Leveling thickness 3-30 cm
Engine power 23 horsepower Paving method Mixing cage paving
firing Electric start Vibration frequency 4500 times/min
Fuel tank capacity 93 # gasoline 17L Vibration force 2000N
Fuel consumption rate 1.5-3.0L/h working efficiency 300 ㎡ -500 ㎡/hour
Oil volume 1.4L Laser control system
Replacement time ≤100/h Vibration mode motor vibration
walking system   control system Laser emitter
Walking mode wheel type control effect Flat, sloping or double sloping
drive control Hydraulic drive tire
Walking speed 3.3KM/h Track width 910mm
Forward and backward Infinitely variable speed Ground clearance 390mm
steer control electronic control Tire type 100/90-21 solid anti puncture tires
Hydraulic oil quantity 30L net weight 880Kg
    size 3380×2500×1280mm
